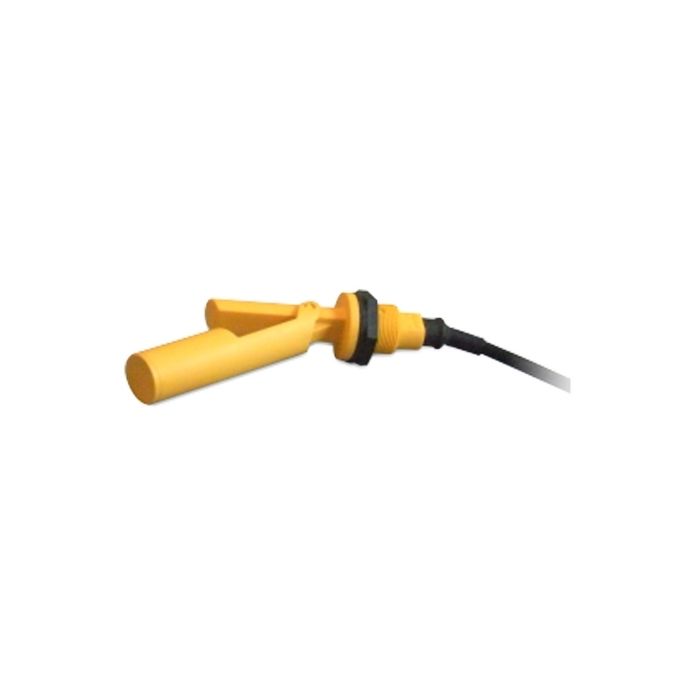

Ema LS0001 Float Level Switch

General Features

Float Level Switches

  • Suitable for liquid
  • Point to Point level measurement
  • Side mounting.
  • Simple operation and easy installation.
  • NO or NC output.
  • The user can choose LS0003 against strong acid/alkali liquid
  • It is reliable over 2 million working cycles
  • LS1 Series can reach up to 200℃
  • Electric design: AC/DC
  • Output: no/NC
  • Ambient pressure: 10 bar
  • Operating temperature: LS0 Series -20…80/100℃,LS1 Series -20…200℃

Technical Specifications

Medium Temperature : -20...+80
Supply Voltage: 240 VAC/DC
Housing Material: PBT
Thread : M18 Threaded
Output : NO/NC
Power connection : 2m, PVC
Contact Rating : 2.5 A
Operating Pressure : 10 Bar
Protection : IP68
