General Features

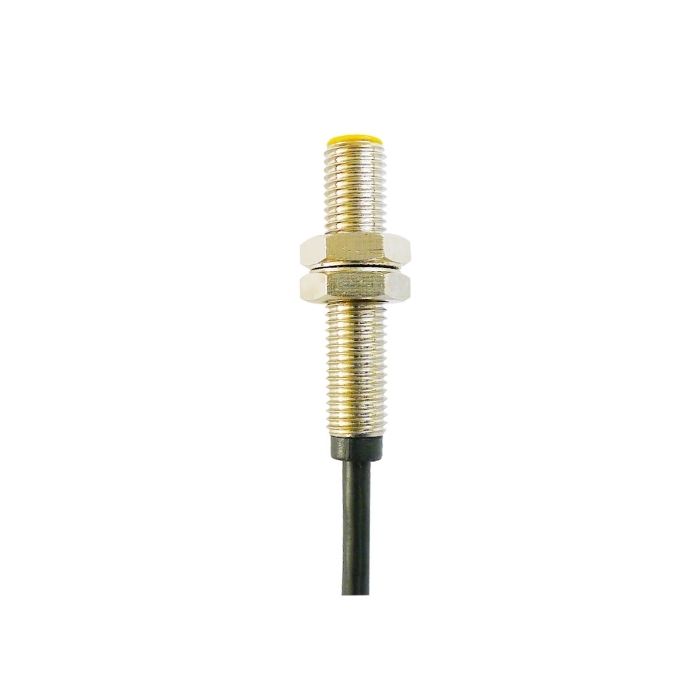

Inductive Proximity Sensors
– Non-contact
– Sensing materials: Metal
– Mounting: Flash or Non-Flash
Size: M8,M12,M18,M30,Ø34
– Output: PNP/NPN, NO/NC
– Display: Long lifetime LED
– Connection: Cable or M12 connector
– Protection classification: IP67
– Simple operation and Quick installation.
– Enhanced immunity to interference and EMC ratings
Technical Specifications
| Diameter : M8 |
| Mounting : Flush |
| Housing Material : Stainless Steel |
| Supply Voltage : 10-36VDC |
| Detection range : 1.5 mm |
| Electrical Wiring : 3-Wire |
| Output : NPN-NC |
| Connection : 2m Cable |
| Protection : IP67 |
| Operating Temperature : -25...80℃ |
