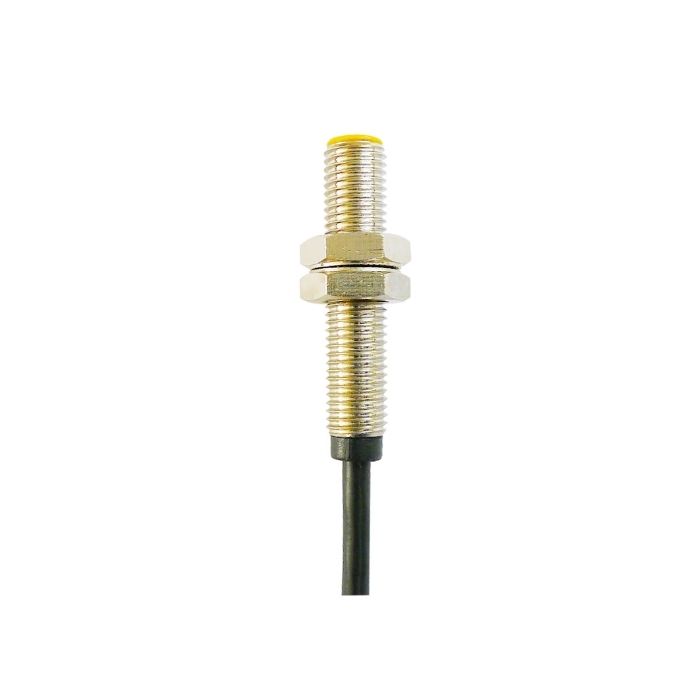

Ema IA1003 Inductive Proximity Sensor M8

General Features

Inductive Proximity Sensors

– Non-contact

– Sensing materials: Metal

– Mounting: Flash or Non-Flash

Size: M8,M12,M18,M30,Ø34

– Output: PNP/NPN, NO/NC

– Display: Long lifetime LED

– Connection: Cable or M12 connector

– Protection classification: IP67

– Simple operation and Quick installation.

– Enhanced immunity to interference and EMC ratings

Technical Specifications

Diameter : M8

Mounting : Flush

Housing Material : Stainless Steel

Supply Voltage : 10-36VDC

Detection range : 1.5 mm

Electrical Wiring : 3-Wire

Output : NPN-NO

Connection : 2m Cable

Protection : IP67

Operating Temperature : -25...80℃
