General Features

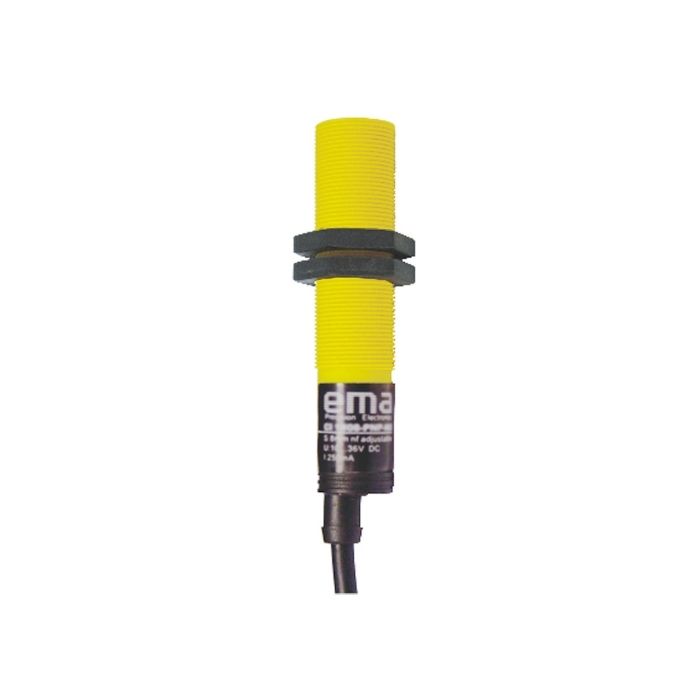

Capacitive Proximity Sensor
– Non-contact and point level measurement
– Sensing materials: Metal/Non-Metal
– For plastic tank and side glass, without drilling hole
– It can be used as level measurement.
– Size: M18,M30,Ø34, 35x70mm (Smart type with flat mounting)
– Mounting: Non-flash
– Output: PNP/NPN, NO/NC
– Display: Long lifetime LED
– Connection: Cable or Connector
– Protection classification: IP67
Technical Specifications
| Diameter : M18 |
| Housing : PBT+GF |
| Supply Voltage : 10-36VDC |
| Sensing Range : 8mm |
| Electrical Wiring : 3-Wire |
| Output : PNP-NC |
| Connection : 2m Cable |
| Protection : IP67 |
| Operating Temperature : -25...80℃ |
