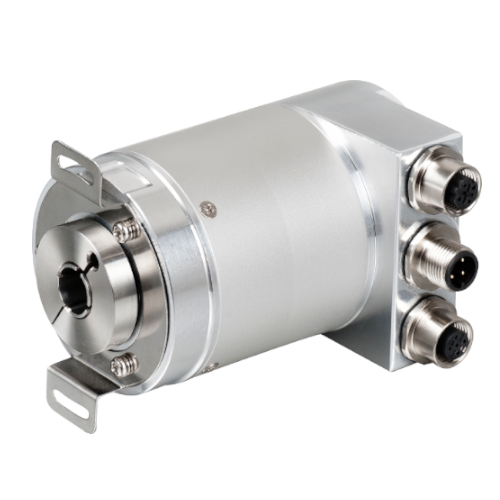

ELCO EAM58-PN Series Encoder

General Description:
The ELCO EAM58-PN Series consists of absolute rotary encoders supporting the PROFINET communication protocol. With a 58 mm housing diameter, high resolution, and robust design, it ensures reliable and real-time position feedback in industrial automation, robotics, conveyor systems, packaging machinery, and process control applications. Available in single-turn and multi-turn versions.

Technical Specifications:

• Housing Diameter: Ø58 mm

• Material: Aluminum housing, stainless steel shaft

• Shaft Type: Solid shaft or hollow shaft (depending on model)

• Shaft Diameter: Ø10 mm, Ø12 mm (optional)

• Protection Class: IP65 (optional IP67)

• Maximum Speed: 6000 rpm

• Load Capacity: 50 N axial, 80 N radial

• Shock Resistance: 30 G / 11 ms

• Vibration Resistance: 10 G (10–2000 Hz)

• Operating Temperature: -20 … +85 °C

• Weight: Approx. 0.35 kg

Electrical Specifications:

• Supply Voltage: 10–30 VDC

• Output Interface: PROFINET (Conformance Class B, Real-Time / IRT supported)

• Resolution: Single-turn – up to 17 bits, Multi-turn – up to 32 bits

• Data Transmission Rate: 100 Mbps full duplex

• Connection Type: M12 connector (coded) or RJ45 (depending on model)

Advantages:

• Real-time and high-speed data transfer via PROFINET

• Absolute encoder retains position data during power loss

• High resolution and repeatability

• Rugged design suitable for industrial environments
