ELCO EAM58-DP Serises Encoder

General Description:

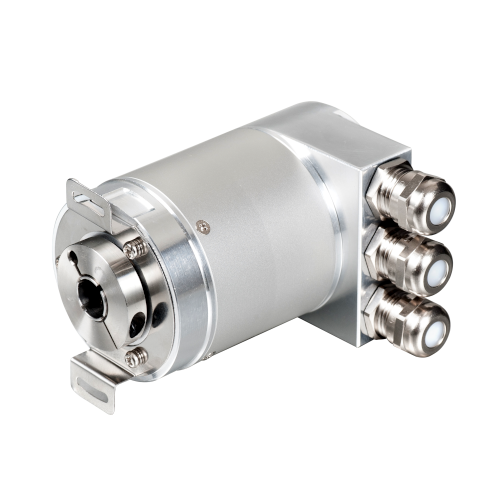

The ELCO EAM58-DP Series consists of absolute rotary encoders supporting the PROFIBUS-DP communication protocol. With a 58 mm housing diameter, high resolution, fast data transfer, and robust construction, it ensures reliable position feedback in factory automation, robotics, conveyor systems, packaging machinery, and process control applications. Available in both single-turn and multi-turn versions.

Technical Specifications:

• Housing Diameter: Ø58 mm

• Material: Aluminum housing, stainless steel shaft

• Shaft Type: Solid shaft or hollow shaft (depending on model)

• Shaft Diameter: Ø10 mm, Ø12 mm (optional)

• Protection Class: IP65 (optional IP67)

• Maximum Speed: 6000 rpm

• Load Capacity: 50 N axial, 80 N radial

• Shock Resistance: 30 G / 11 ms

• Vibration Resistance: 10 G (10–2000 Hz)

• Operating Temperature: -20 … +85 °C

• Weight: Approx. 0.35 kg

Electrical Specifications:

• Supply Voltage: 10–30 VDC

• Output Interface: PROFIBUS-DP (EN 50170, profile 3.062)

• Resolution: Single-turn – up to 17 bits, Multi-turn – up to 32 bits

• Data Transmission Rate: 9.6 kbps – 12 Mbps (automatic baud rate detection)

• Connection Type: M12 or M23 connector (depending on model)

Advantages:

• Fast and reliable communication via PROFIBUS-DP

• High resolution and repeatability

• Absolute encoder retains position data during power loss

• Rugged and industrial-grade design for harsh environments
