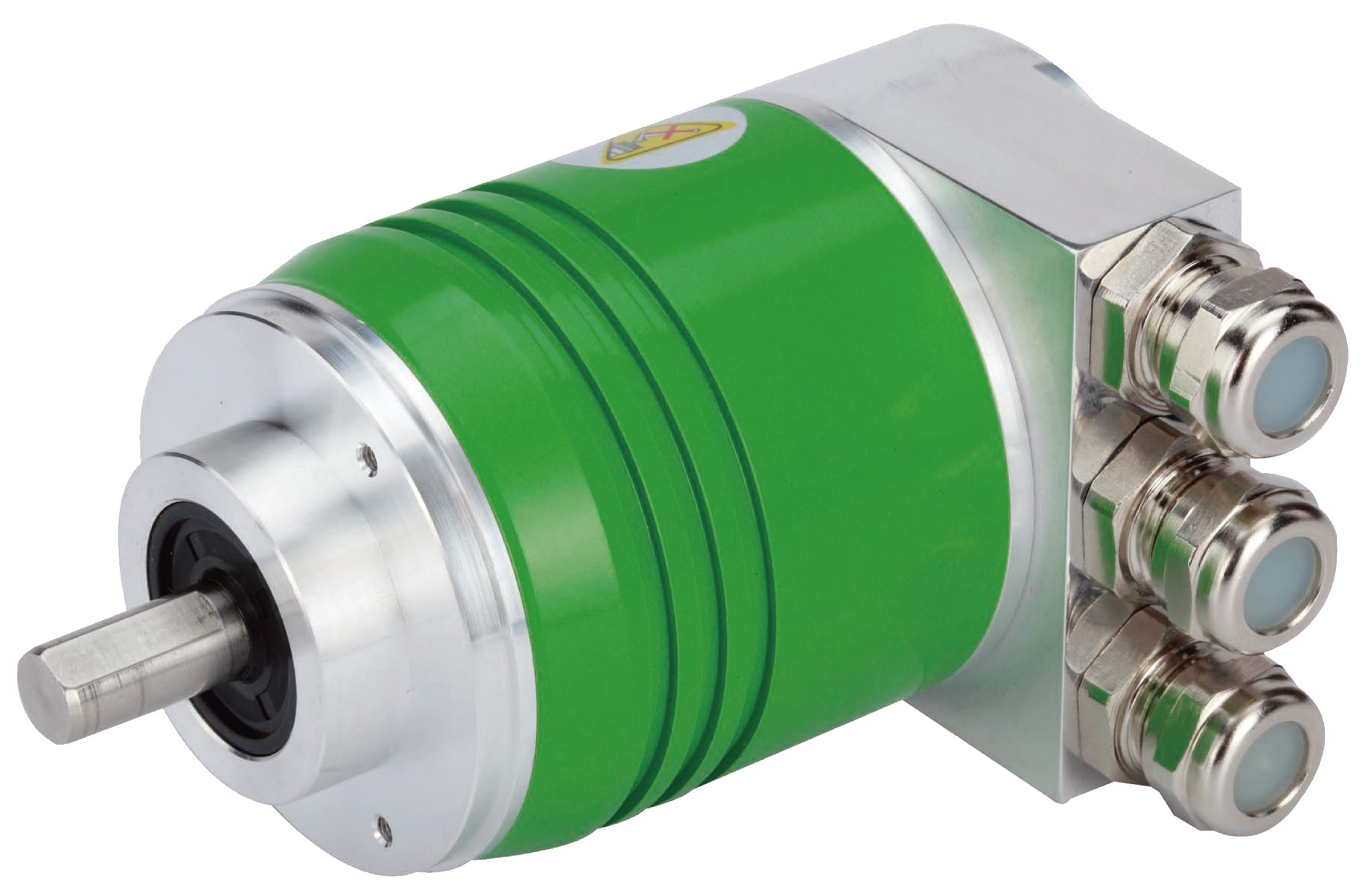

ELCO EAM58-DN Series Encoder

General Description:
The ELCO EAM58-DN Series consists of absolute rotary encoders supporting the DeviceNet communication protocol. With a 58 mm housing diameter, high resolution, and robust design, it ensures reliable position feedback in industrial automation, robotics, conveyor systems, packaging machinery, and process control applications. Available in single-turn and multi-turn versions.

Technical Specifications:

  • Housing Diameter: Ø58 mm

  • Material: Aluminum housing, stainless steel shaft

  • Shaft Type: Solid shaft or hollow shaft (depending on model)

  • Shaft Diameter: Ø10 mm, Ø12 mm (optional)

  • Protection Class: IP65 (optional IP67)

  • Maximum Speed: 6000 rpm

  • Load Capacity: 50 N axial, 80 N radial

  • Shock Resistance: 30 G / 11 ms

  • Vibration Resistance: 10 G (10–2000 Hz)

  • Operating Temperature: -20 … +85 °C

  • Weight: Approx. 0.35 kg

Electrical Specifications:

  • Supply Voltage: 10–30 VDC

  • Output Interface: DeviceNet (ODVA standard)

  • Resolution: Single-turn – up to 17 bits, Multi-turn – up to 32 bits

  • Data Transmission Rate: 125 kbps, 250 kbps, 500 kbps (selectable)

  • Connection Type: M12 or M23 connector (depending on model)

Advantages:

  • Fast and stable data transfer via DeviceNet

  • Absolute encoder retains position data during power loss

  • High resolution and repeatability

  • Compact design for harsh industrial environments
