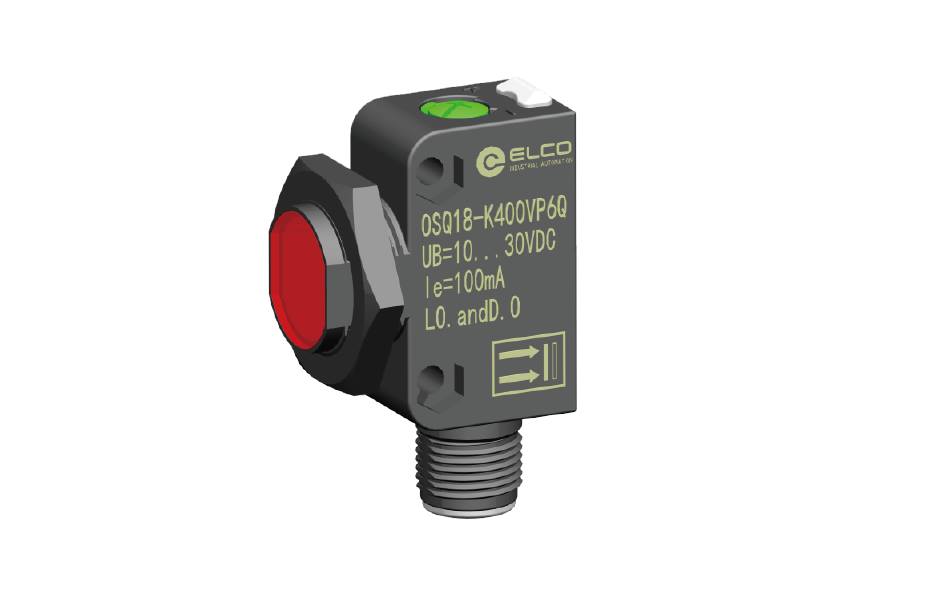

Elco OSQ18 Series Photoelectric Sensor

General Description:
The ELCO OSQ18 Series photoelectric sensors provide high-precision object detection and position control in industrial automation applications. With a metal M18 cylindrical housing, they are designed for durability. Available in diffuse, retro-reflective, and through-beam modes, they offer solutions for various applications.

Technical Specifications:

• Housing Type: M18 cylindrical

• Housing Material: Metal

• Sensing Principle: Diffuse, retro-reflective, through-beam (depending on model)

• Sensing Distance: 0.1 m – 20 m (depending on model)

• Output Type: PNP or NPN, NO/NC option

• Supply Voltage: 10–30 VDC

• Response Time: ≤1 ms

• Protection Class: IP67

• Operating Temperature: -25 … +70 °C

• Connection Type: M12 connector or cable type

• LED Indicator: For power and detection status

Advantages:

• High mechanical durability with metal housing

• High detection sensitivity

• Full protection against dust and water (IP67)

• Wide range of applications with multiple sensing modes

• Flexible mounting and long service life
