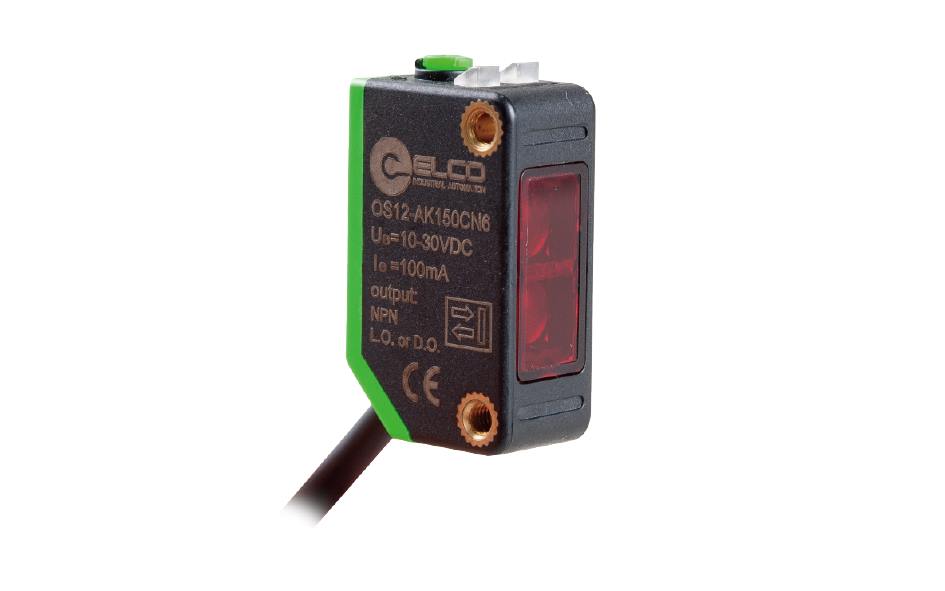

Elco OS12 Series Photoelectric Sensor

General Description:
The ELCO OS12 Series photoelectric sensors provide reliable object detection in industrial automation systems with their compact and durable design. They are widely used in small-sized equipment, conveyor systems, packaging machines, and robotic applications. Available in diffuse, retro-reflective, and through-beam sensing options to meet various application needs.

Technical Specifications:

• Housing Type: Compact rectangular type

• Housing Material: ABS plastic or metal (depending on model)

• Sensing Principle: Diffuse, retro-reflective, through-beam (depending on model)

• Sensing Distance: 0.05 m – 15 m (depending on model)

• Output Type: PNP or NPN, NO/NC option

• Supply Voltage: 10–30 VDC

• Response Time: ≤1 ms

• Protection Class: IP67

• Operating Temperature: -25 … +70 °C

• Connection Type: Cable type or M8/M12 connector

• LED Indicator: For power and detection status

Advantages:

• Easy installation in tight spaces due to compact size

• High detection accuracy

• IP67 protection for dust and water resistance

• Multiple sensing types for versatile applications

• Long service life with maintenance-free design
