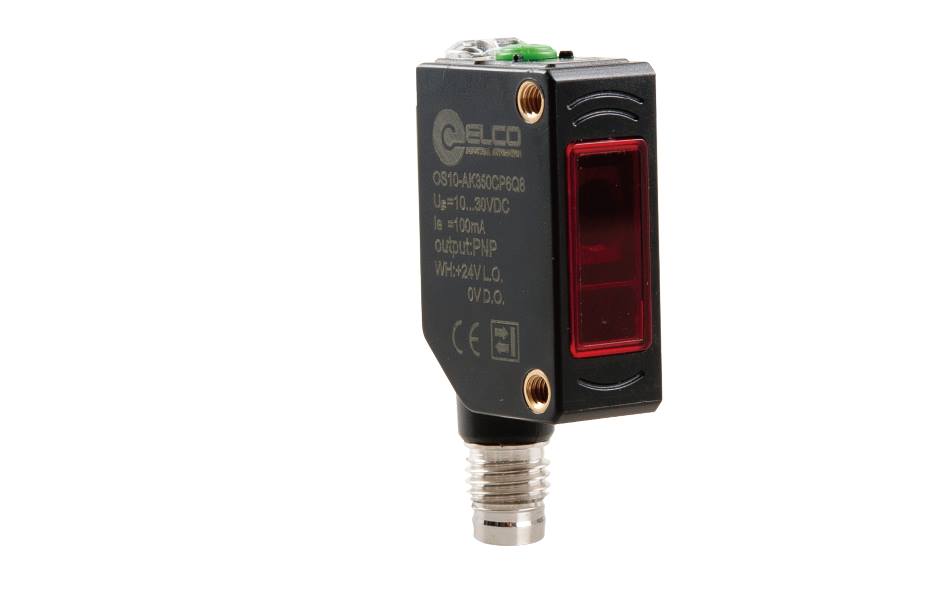

Elco OS10 Series Photoelectric Sensor

General Description:
The ELCO OS10 Series photoelectric sensors offer reliable detection in confined spaces thanks to their compact size. They are used in industrial automation, packaging machines, conveyor systems, and quality control applications for object detection, positioning, and counting. Available in diffuse, retro-reflective, and through-beam sensing types to meet various requirements.

Technical Specifications:

• Housing Type: Compact rectangular type

• Housing Material: ABS plastic or metal (depending on model)

• Sensing Principle: Diffuse, retro-reflective, through-beam (depending on model)

• Sensing Distance: 0.05 m – 15 m (depending on model)

• Output Type: PNP or NPN, NO/NC option

• Supply Voltage: 10–30 VDC

• Response Time: ≤1 ms

• Protection Class: IP67

• Operating Temperature: -25 … +70 °C

• Connection Type: Cable type or M8/M12 connector

• LED Indicator: For power and detection status

Advantages:

• Compact size for installation in tight spaces

• Wide range of applications with multiple sensing modes

• Fast response time for high accuracy

• IP67 rating for dust and water resistance

• Long service life with maintenance-free design
