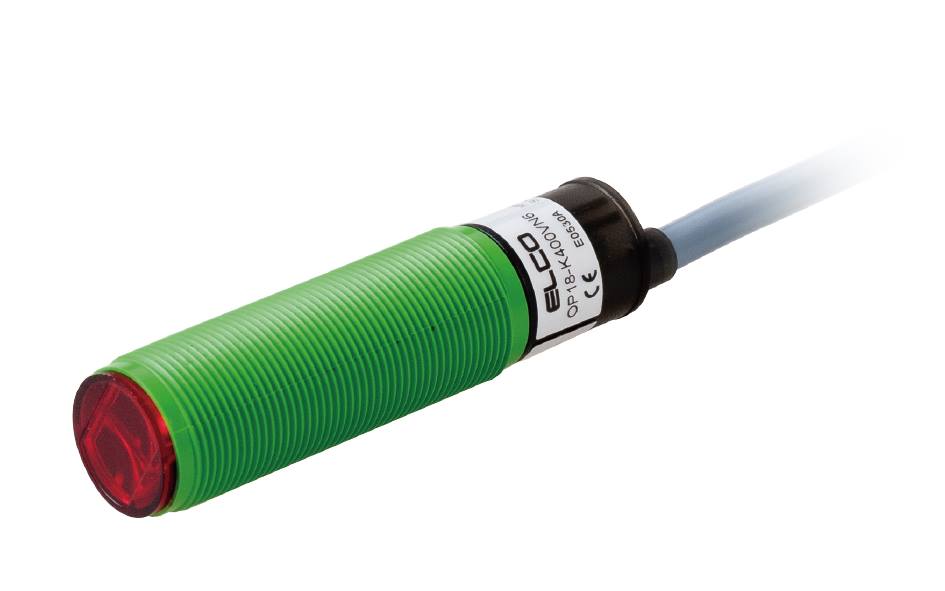

Elco OP18 Series Photoelectric Sensor

General Description:
The ELCO OP18 Series photoelectric sensors are high-performance devices designed for object detection and position control in industrial automation systems. With an M18 cylindrical plastic housing, they offer a lightweight and cost-effective solution. Available in diffuse, retro-reflective, and through-beam sensing modes, they adapt to various application requirements.

Technical Specifications:

• Housing Type: M18 cylindrical

• Housing Material: ABS plastic

• Sensing Principle: Diffuse, retro-reflective, through-beam (depending on model)

• Sensing Distance: 0.1 m – 15 m (depending on model)

• Output Type: PNP or NPN, NO/NC option

• Supply Voltage: 10–30 VDC

• Response Time: ≤1 ms

• Protection Class: IP67

• Operating Temperature: -25 … +70 °C

• Connection Type: M12 connector or cable type

• LED Indicator: For power and detection status

Advantages:

• Lightweight and economical design

• High detection sensitivity

• Full protection against dust and water (IP67)

• Flexible mounting options

• Wide range of applications with multiple sensing modes
