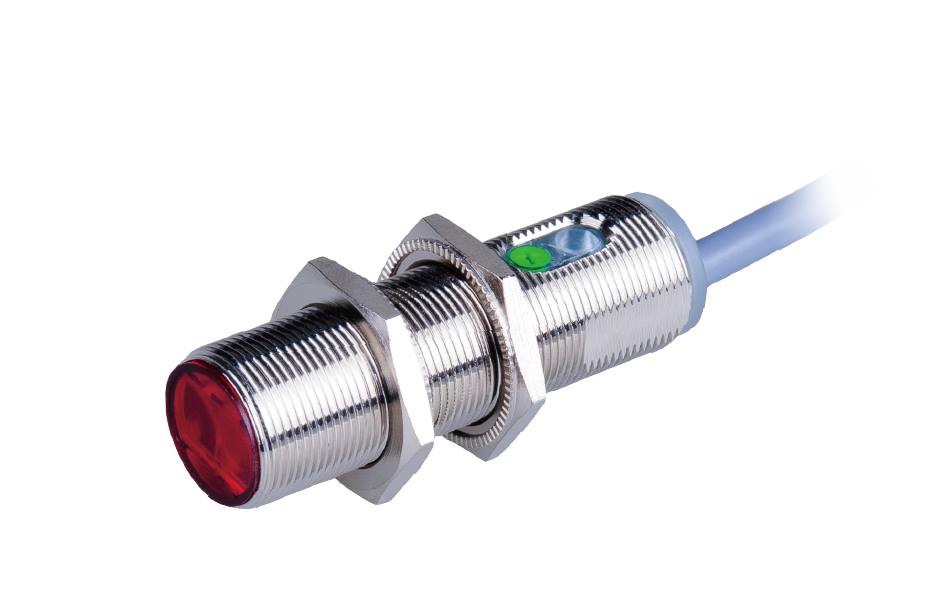

Elco OM18 Series Photoelectric Sensor

General Description:
The ELCO OM18 Series photoelectric sensors are high-performance devices designed for object detection, positioning, and counting in industrial automation systems. With an M18 cylindrical metal housing, they provide excellent mechanical durability and can be used reliably in harsh industrial environments. Available in diffuse, retro-reflective, and through-beam sensing modes, they offer versatile solutions for different application needs.

Technical Specifications:

• Housing Type: M18 cylindrical

• Housing Material: Nickel-plated brass

• Sensing Principle: Diffuse, retro-reflective, through-beam (depending on model)

• Sensing Distance: 0.1 m – 20 m (depending on model)

• Output Type: PNP or NPN, NO/NC option

• Supply Voltage: 10–30 VDC

• Response Time: ≤1 ms

• Protection Class: IP67

• Operating Temperature: -25 … +70 °C

• Connection Type: M12 connector or cable type

• LED Indicator: For power and detection status

Advantages:

• Long service life with durable metal housing

• High detection accuracy and fast response time

• Full protection against dust and water (IP67)

• Flexible use with different sensing modes

• Easy installation and maintenance
