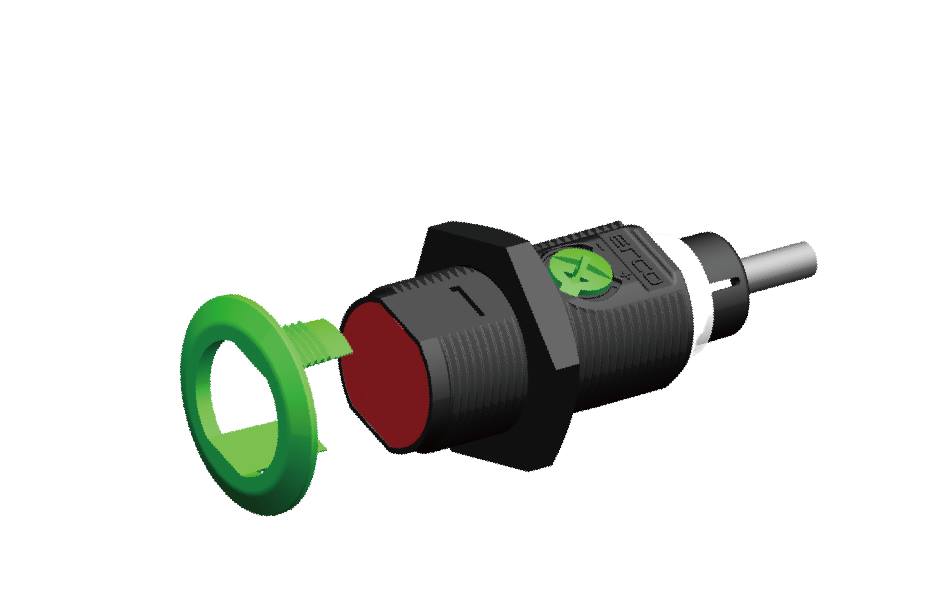

Elco OG18 Series Photoelectric Sensor

General Description:
The ELCO OG18 Series photoelectric sensors are high-precision devices designed for object detection, counting, and position control in industrial automation. With a cylindrical M18 housing, these sensors offer robust construction, easy installation, and various sensing modes (diffuse, retro-reflective, through-beam) to meet diverse application needs. They ensure reliable performance in production lines thanks to high repeatability and fast response time.

Technical Specifications:

• Housing Type: M18 cylindrical

• Material: Metal or plastic housing (depending on model)

• Sensing Principle: Diffuse, retro-reflective, through-beam (model dependent)

• Sensing Distance: 0.1 m – 20 m (depending on model)

• Output Type: PNP or NPN, NO/NC configuration

• Supply Voltage: 10–30 VDC

• Response Time: ≤1 ms

• Protection Class: IP67

• Operating Temperature: -25 … +70 °C

• Connection Type: M12 connector or cable type

• LED Indicator: For power and detection status

Advantages:

• Easy installation with compact and robust M18 housing

• High detection accuracy and fast response

• IP67 protection for harsh industrial conditions

• Flexible usage with different sensing technologies

• Easy integration with multiple connection options
