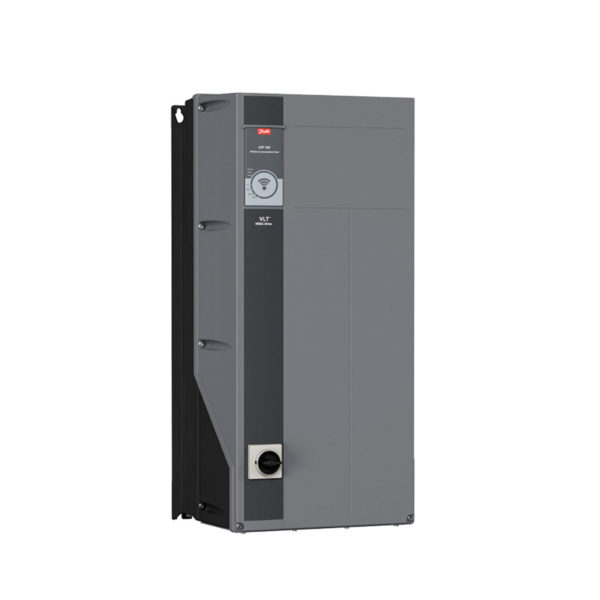

Danfoss VLT HVAC Drive FC 102

General Description

Get even higher reliability and lower total cost of ownership (TCO) in your heating, ventilation and air-conditioning (HVAC) installations, with this unique VSD optimized for building automation systems.

More than ever, the extreme climates, inaccessible machine rooms and isolated outposts of our planet need the best process control there is for their HVAC installations. Your everyday critical functions and costly systems need it too, as they face ever-increasing competition and efficiency demands. Always with high performance in mind, the enhanced VLT® HVAC Drive gives you more room to maneuver. It confronts the issues and gives you rock-solid reliability. With rock-bottom lifecycle costs too.

Technicial Specifications

Danfoss VLT® HVAC Drive solves challenging air conditioning problems and enables advanced, intelligent fan and pump control in modern buildings.

Power range for 3 phases; 200-240V [kW] 1.1-45
Power range for 3 phases; 380-480V [kW] 1.1-1000
Power range for 3 phases; 525-600V [HP] 1.1-90
Power range for 3 phases; 525-690V [kW] 1.1-1400
Other features 12 pulse driver – Low harmonic driver
Integrated communication functions BACnet (MSTP) – Modbus RTU – Metasys N2
IP protection class IP20 – IP00
IP protection class (UL Type)
IP21/Type 1
IP55/Type 12
IP54/Type 12
IP66/Type 4X
Type Low Voltage Drivers
