High-tech at every step

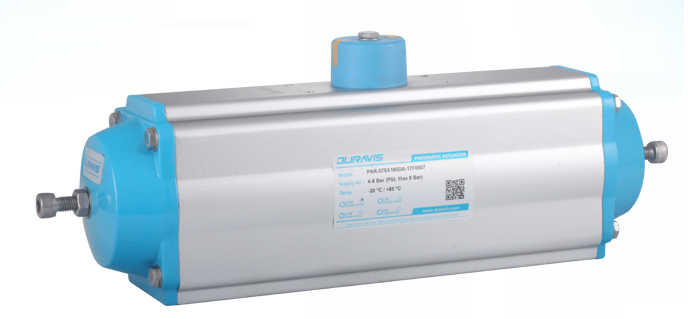

DURAVIS 180 Degree Turn Pneumatic Actuators

(180-Turn Rotary, PAR-...X180DA)

Application: On-Off and Proportional Control Of Valves And Dampers

Torque Range: 3...909 Nm

Supply Air: Min:4bar, Max:8bar

Temp.: -20 C ...80 C

Body: Extrusion Aluminium

Connection.: ISO 5211 Namur VDI/VDE

Description:

Industry-proven pneumatic actuators; 180° DURAVIS PAR Series Actuators are ideal for multi-port (3, 4, 5 way) ball valves, 3-way plug valves, conveyor diverters, bulk material diverters and any other application requiring reliable pneumatic torque over a 180 rotation. DURAVIS PAR Series' compact rack and pinion construction means that actuators are lightweight and occupy a minimum of space, allowing users to install them in any orientation between close pipe configurations. The necessary supplied air must be between 4 to 8 bar for a proper operation.

DURAVIS PAR-... X180DA Series are 180 degree rotation actuators and operate according to double acting principle. On request, those are manufactured with stroke adjustment on the caps

Model No / Order Coding:

Model Size Nm (At 6 bar) Control Shaft Flange Connection
PAR-063X180DA-14F0305 Ø63 35,3 Nm Double Acting 14x14 mm F03/05
PAR-075X180DA-17F0507 Ø75 69,9 Nm Double Acting 17x17 mm F05/07
PAR-088X180DA-17F0507 Ø88 110,1 Nm Double Acting 17x17 mm F0507
PAR-100X180DA-17F0710 Ø100 160,3 Nm Double Acting 17x17 mm F07/10
PAR-125X180DA-27F0710 Ø125 333 Nm Double Acting 27x27 mm F07/10
PAR-160X180DA-27F1012 Ø160 682 Nm Double Acting 27x27 mm F10/12

*When pneumatic actuator selection is made, the actuator moment must be 25-30% higher than the output torque of the valve.

Technical Features:

Supply Air: 4 - 8 bar
Body: Anodized Aluminum Extrusion
Cover and Pistons: Aluminum Die-Casting

Shaft: Carbon Steel or Stainless Steel
Seals: NBR (Option; VITON or Silicone)
Valve Connection Standard: ISO 5211

Temperature Range: -20°C …+80°C (NBR O-Ring)
Stroke Adjustment: 180 degree turn actuators have ±5 degree adjustment.

Options:

Pneumatic Actuators For Low Temperature: -35°C …+80°C (Silicone)
Pneumatic Actuators For High Temperature: -15°C …+160°C (VITON)

On Request; Teflon Coated Actuator Body, PVC Body Pneumatic Actuators, Stainless Steel Body Pneumatic Actuators

Advantages:

• 3 Different Operating Temperature Range (Low, Standard and High Temperatures)

• 2 Different Protection Levels (General and Acidic Environment Applications)

Usage: Multi-Port (3, 4, 5 way) Ball Valves, 3-way Plug Valves, Conveyor Diverters, Bulk Material Diverters, Milling Machine Equipments
